Умный подъемник для дома
В виллах и частных помещениях качество жизни часто определяют детали. Наши лестницы-платформы разработаны для семей, которые ценят красоту и практичность, и идеально сочетают в себе элегантный внешний вид и компактную конструкцию. Каждая лестница-платформа строго соответствует стандартам безопасности ЕС EN81-20 и EN50, от выбора материалов до испытаний на несущую способность, от противоскользящего дизайна до устойчивой конструкции, чтобы вы и ваша семья могли с уверенностью делать каждый шаг.
Модели подъемников Dazen

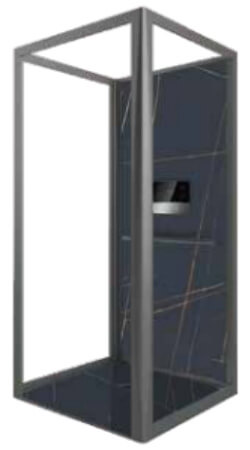

DZ-PE01

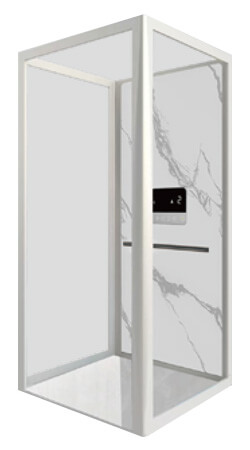

DZ-PE02

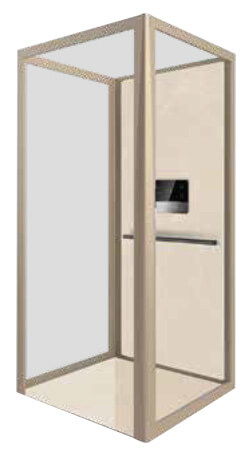

DZ-PE03

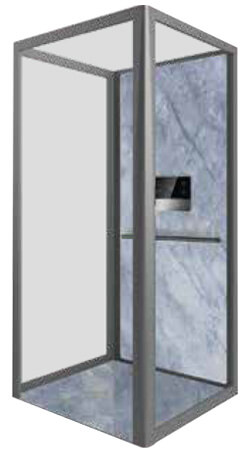

DZ-PE04

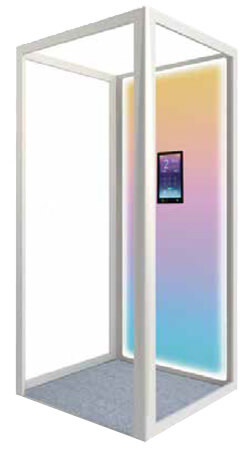

DZ-PE05

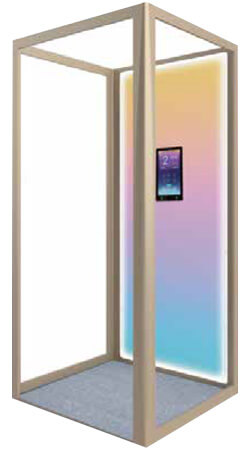

DZ-PE06

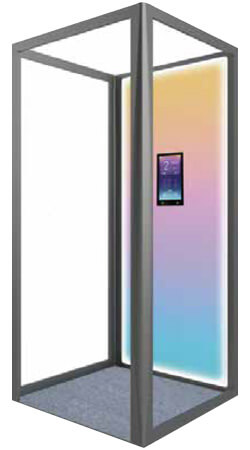

DZ-PE07

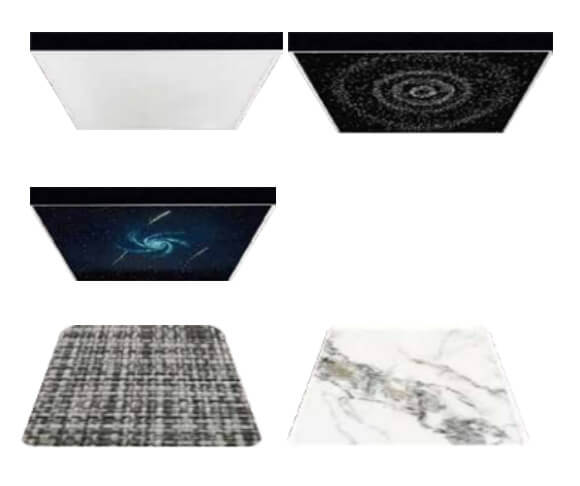

Серия потолочных/напольных

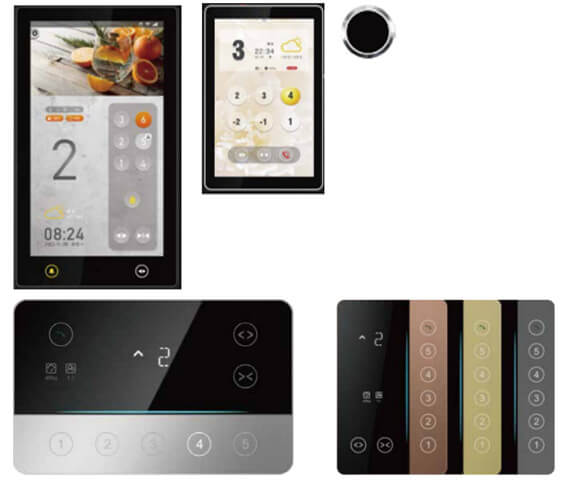

COP/LOP
Технические характеристики
| No. | Basic parameters/component name | Parameters | Parameters |
|---|---|---|---|
| 1 | Model/Series | PT1000-L | PT1000-H |
| 2 | Maximum load kg | ≤320kg | ≤320kg |
| 3 | Rated speed m/s | ≤0.3m/s | ≤0.3m/s |
| 4 | Number of floors | ≤5 | ≤5 |
| 5 | Lifting height m | ≤12 | ≤12 |
| 6 | Platform background height mm | 2100 | 2100 |
| 7 | Door opening height mm | 2000 | 2000 |
| 8 | Counterweight position | Rear mounted/Lateral | Rear mounted/Lateral |
| 9 | Minimum top floor mm | 2500 | 2500 |
| 10 | Minimum bottom pit mm | 60 | 60 |
| 11 | Traction ratio | 1 | 1 |
| 12 | Car frame platform | Backpack rack | Backpack rack |
| 16 | Core Power | ||
| 19 | Rated power: 1kW | ● | ● |
| 20 | Voltage: AC220V | ● | ● |
| 21 | Brake voltage: DC110V | ● | ● |
| 22 | Rotary encoder: ERN 1387 | ● | ● |
| 23 | Intelligent Control | ||
| 24 | Control cabinet model: iCtrl-PRO vertical model/Ctrl-PRO horizontal model | ● | ● |
| 26 | Chip: 32-bit | ● | ● |
| 27 | Driver power: 3.7kw | ● | ● |
| 28 | Communication method: CAN communication | ● | ● |
| 29 | Input power: 220V | ● | ● |
| 30 | Appearance kit: Powder spray | ● | ● |
| 31 | Guidance system | ||
| 32 | Hoisting rope: Steel belt | ● | ● |
| 33 | Car guide rail: T78 | ● | ● |
| 34 | Counterweight guide rail: Aluminum Alloy 6063-T5 | ● | ● |
| 35 | Guide shoe: Flat side rolling guide shoe | ● | ● |
| 36 | Door opening method | ||
| 37 | Automatic double doors | ● | ● |
| 38 | Automatic single opening door | ○ | ○ |
| 40 | In-car control box: XCP31/ 10.1-inch touch screen/ 13.3-inch touch screen | ● | ○ |
| 43 | Out-hall call: Single button | ● | ● |
| 44 | Leveling system: Absolute position | ● | ● |
| 45 | Safety components | ||
| 46 | Safety clamp: FSGS10E electronic safety clamp | ● | ● |
| 47 | Buffer: Polyurethane HC-B-3 | ● | ● |
| 48 | Safety touch panel + torque feedback | ● | / |
| 49 | Door protection (light curtain) | / | ● |
| 50 | Smart functions | ||
| 51 | Torque limit | ● | ● |
| 52 | PG vector control | ● | ● |
| 53 | Terminal floor protection | ● | ● |
| 54 | Speed feedback detection function | ● | ● |
| 55 | STO feedback detection function | ● | ● |
| 56 | Drive overheat self-detection | ● | ● |
| 57 | Energy saving mode | ● | ● |
| 58 | Current ramp removal | ● | ● |
| 59 | Maintenance carrier reduction | ● | ● |
| 60 | Door lock short circuit detection | ● | ● |
| 61 | Integrated ARD function | ● | ● |
| 62 | STO | ● | ● |
| 63 | Release function | ● | ● |
| 64 | One-button emergencycall | ● | ● |
| 65 | Absolute position system | ● | ● |
| 66 | Remote IoT | ||
| 67 | Voice help, real-time call | ○ | ○ |
| 68 | Over-the-air upgrade of the entire elevator | ○ | ○ |
| 69 | Remote fault query | ○ | ○ |
| 70 | Real-time monitoring of elevator status | ○ | ○ |
| 71 | Real-time notification of elevator faults | ○ | ○ |
| 72 | Hoistway components | ||
| 73 | Backpack rack | ● | ● |
| 74 | Travel cable | ● | ● |
| 75 | Guide rail bracket | ● | ● |
| 76 | Counterweight system | ● | ● |
| Aluminum alloy shaft: White, Champagne gold, Black | |||
| 81 | Shaft glass: White glass/ Gray glass | ● | ● |
| 83 | Mechanical accessories appearance color | ||
| 84 | White | ● | ● |
| 85 | Rose gold | ○ | ○ |
| 86 | Black | ○ | ○ |
